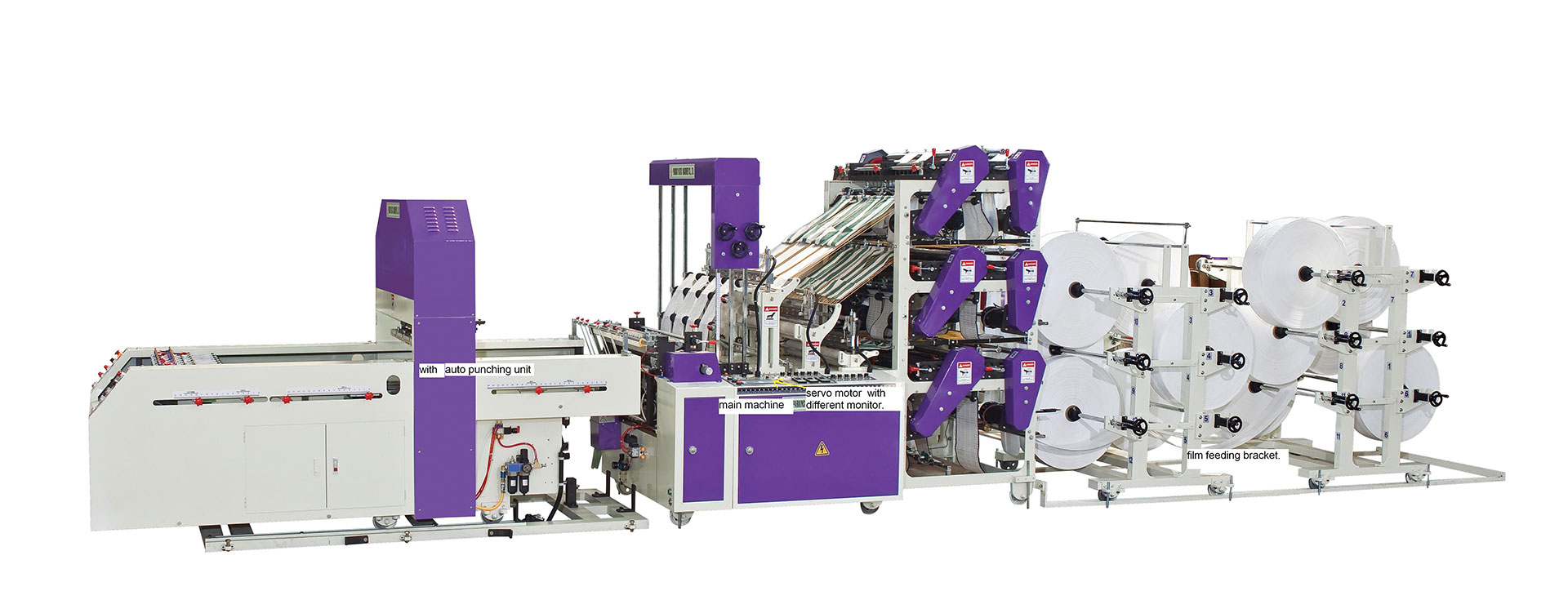

3 Layer 12-Lane Fully Automatic Servo-Control Bottom Seal Bag Machine (Flat Bag, T-Shirt Bag)

BJATRP-12L+S

High-speed 3-layer 12-lane servo bottom seal bag machine for HDPE, LDPE, PLA, biodegradable, producing flat and T-shirt bags for large-scale retail, food packaging.
Add to Inquiry

Features

  • Triple decker for 12 lanes in total.
  • The maximum diameter of the film roll is 60 cm.
  • Automatic tension control drives film by AC or DC motor.
  • Uses servo motor for feeding, with stable sealing abilities, and fast on speed change.
  • Easy to change bag size, and size error is permissible.
  • Machine stops when abnormality is detected.
  • With auto punching unit.
  • Hot pin positions can be moved freely.
  • Able to produce flat bags and T-shirt bags.
  • Air cylinder punching device featuring pressure boost. Enhancing speed and accuracy. Low noise, with no oil leakage.
  • Enclosed with punching position calibrating plate to ensure accurate hole position on T-shirt bag handles.

Specifications

MODEL BJATRP-12L+S 32"x30"  BJATRP-12L+S 40"x30"
Max. Cutting Width mm (inch) 165 ( 6.5") x 4 203 ( 8" ) x 4
Max. Cutting Length m (inch) 635 ( 25" ) 635 ( 25" )
Thickness micron/sheet 9-50 9-50
Length Tolerance mm ±1 ±1
Production Rate pcs / min max.140 max.140
Heater Capacity kW 7.4 8.2
Power Required kW 18.1 19.6
Machine Dimensions LxWxH cm 910 x 130 x 203 910 x 160 x 203
Main Machine Weight kg 2500 2900
Main Packing Measurement LxWxH cm 270 x 173 x 221  270 x 221 x 221
Sub Machine Weight kg 1500 1700
Sub Packing Measurement LxWxH cm 306 x 145 x 197 306 x 170 x 197


※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Materials

Biodegradable, HDPE, LDPE, PLA, Recycle Material

Related Applications

BJATRP-12L+S bottom sealing bag making machine is versatile for various bag types and industries, meeting diverse market demands.
Bottom Sealing Bag
Bottom Sealing Bag

Bottom-sealing bag is a common packaging material, typically used for packaging various goods and items.
T-Shirt Bag
T-Shirt Bag

The "T-shirt bag," named for its resemblance to T-shirt, is a common type of plastic bag.
Food Packaging
Food Packaging

Packaging plays a crucial role in prePackaging plays a crucial role in preserving the freshness and extending the shelf life of various food products, especially perishable items like meat, vegetable, and fruit.
Plastic Flat Bag
Plastic Flat Bag

Plastic flat bag is a common type of plastic packaging, typically made of PE material. With a simple and practical design, it is widely used in food, medical, retail, stationery, and daily products.

Related Cases

{{{alt}}}
Customer

Solving Scratch Problems in Industrial Plastic Bag Production
{{{alt}}}
Customer

Efficient Upgrade Solutions for Industrial Bag Manufacturers in Taiwan
{{{alt}}}
Customer

Assisting in Constructing a Modernized Production Facility

FAQ

Q01.

To which countries and regions does Parkins mainly export its bag making machines?

Parkins exports its bag making machines worldwide, including the United States, Europe, Asia, the Middle East, and South America, trusted by manufacturers across diverse industries.

Yes, all Parkins machines comply with CE and other international safety and quality certifications, ensuring stability, durability, and high sealing performance.

Yes, Parkins offers customized designs for molds and machine functions based on customer needs, helping businesses produce bag types tailored to their specific markets.

Yes, Parkins provides comprehensive after-sales service, including installation guidance, operator training, maintenance support, and technical assistance, ensuring long-term machine reliability.

Parkins maintains a stock of genuine spare parts to provide fast replacement, minimizing downtime and keeping production running smoothly.

Parkins offers remote technical support through online diagnostics and troubleshooting. If on-site service is required, professional technicians can be dispatched to assist.

Parkins provides a standard one-year warranty, covering key components and manufacturing defects. After the warranty period, long-term maintenance and spare part support are also available.
