Single-Lane Fully Automatic Servo-Control High Speed T-Shirt Bag Making Machine

BJABP+AS1

Single-lane fully automatic servo T-shirt bag making machine, up to 300 bags/min, for HDPE, LDPE, PLA, biodegradable, and recycled films, ideal for shopping and retail bags.
Add to Inquiry

Features

  • This machine utilizes a servomotor for sending film and ensuring accuracy of bag length. In any case when machine stops functioning.
  • This machine is specialized for T-shirt bag production with auto punching unit.
  • The maximum diameter of the film roll is 60 cm.
  • Uses servo motor for feeding, with stable sealing abilities, and fast on speed change.
  • Machine stops when abnormality is detected.
  • Air cylinder punching device featuring pressure boost. Enhancing speed and accuracy. Low noise, with no oil leakage.
  • Enclosed with punching position calibrating plate to ensure accurate hole position on T-shirt bag handles.

Specifications

Main: 195 x 200 x 185
Rear Feeding: 230 x 170 x 195

MODEL BJABP+AS1 28" BJABP+AS1 32"  BJABP+AS1 40"
Max. Cutting Width mm (inch) 228- 660 ( 9"- 26" ) 254 - 762 (10"- 30" ) 279 - 965 ( 11" - 38" )
Max. Cutting Length mm (inch) 304 - 635 ( 12"- 25") 304 - 635 ( 12"- 25") 304 - 635 ( 12"- 25")
Thickness micron/sheet 9 - 40 9-40 9 - 40
Length Tolerance mm ±1 ±1 ±1
Production Rate pcs / min max.300 max.300 max.300
AC Driving Motor HP 2 2 2
Heater Capacity kW 5.2 5.8 6.7
Power Required kW 13.6 14.2 15.1
Machine Dimensions LxWxH cm 650 x 155 x 200 650 x 165 x 200 650 x 185 x 200
Machine Weight kg 3500 3800 4400
Packing Measurement LxWxH cm Punching: 310 x 131 x 208
Main: 195 x 200 x 185
Rear Feeding: 230 x 170 x 195		 Punching: 310 x 141 x 208
Main: 205 x 200 x 185
 Rear Feeding: 230 x 180 x 195		 Punching: 310 x 161 x 208
Main: 225 x 200 x 185
Rear Feeding: 230 x 200 x 195
Gross Weight kg 4200 4600 5300

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Materials

Biodegradable, HDPE, LDPE, PLA, Recycle Material

Related Applications

BJABP+AS1 t-shirt bag making machine is versatile for various bag types and industries, meeting diverse market demands.
T-Shirt Bag

The "T-shirt bag," named for its resemblance to T-shirt, is a common type of plastic bag.
Food Packaging

Packaging plays a crucial role in prePackaging plays a crucial role in preserving the freshness and extending the shelf life of various food products, especially perishable items like meat, vegetable, and fruit.

Related Cases

{{{alt}}}
Customer

Solving Scratch Problems in Industrial Plastic Bag Production
{{{alt}}}
Customer

Efficient Upgrade Solutions for Industrial Bag Manufacturers in Taiwan
{{{alt}}}
Customer

Assisting in Constructing a Modernized Production Facility

FAQ

Q01.

To which countries and regions does Parkins mainly export its bag making machines?

Parkins exports its bag making machines worldwide, including the United States, Europe, Asia, the Middle East, and South America, trusted by manufacturers across diverse industries.

Yes, all Parkins machines comply with CE and other international safety and quality certifications, ensuring stability, durability, and high sealing performance.

Yes, Parkins offers customized designs for molds and machine functions based on customer needs, helping businesses produce bag types tailored to their specific markets.

Yes, Parkins provides comprehensive after-sales service, including installation guidance, operator training, maintenance support, and technical assistance, ensuring long-term machine reliability.

Parkins maintains a stock of genuine spare parts to provide fast replacement, minimizing downtime and keeping production running smoothly.

Parkins offers remote technical support through online diagnostics and troubleshooting. If on-site service is required, professional technicians can be dispatched to assist.

Parkins provides a standard one-year warranty, covering key components and manufacturing defects. After the warranty period, long-term maintenance and spare part support are also available.

Related Products

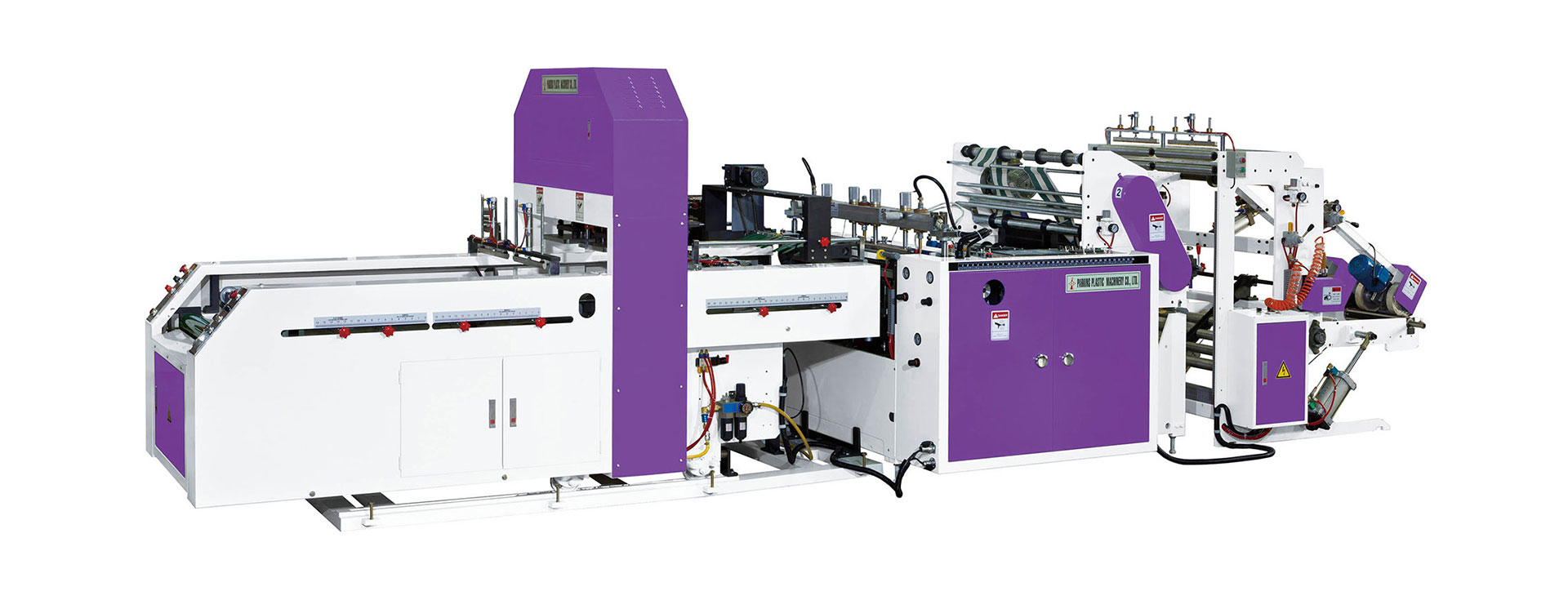

Double-Lane Fully Automatic Servo-Control High Speed T-Shirt Bag Making Machine

Double-Lane Fully Automatic Servo-Control High Speed T-Shirt Bag Making Machine

add

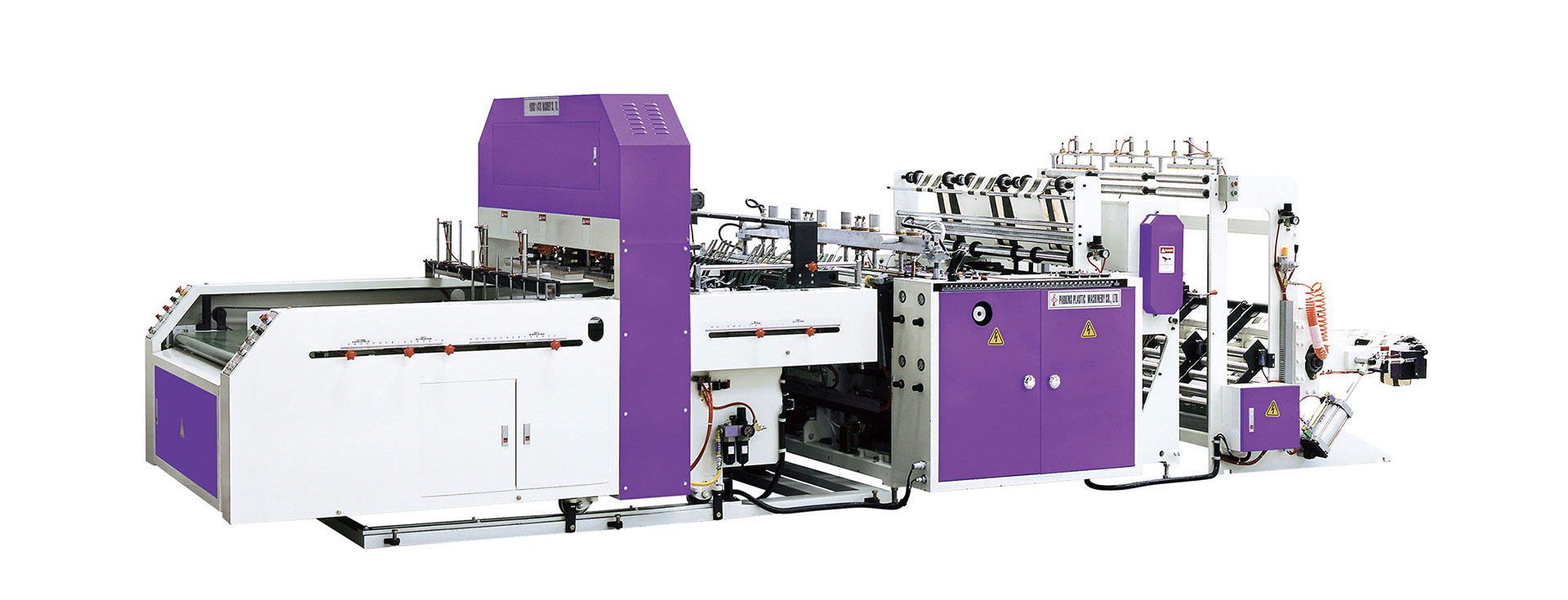

Triple-Lane Fully Automatic Servo-Control High Speed T-Shirt Bag Making Machine

Triple-Lane Fully Automatic Servo-Control High Speed T-Shirt Bag Making Machine

add

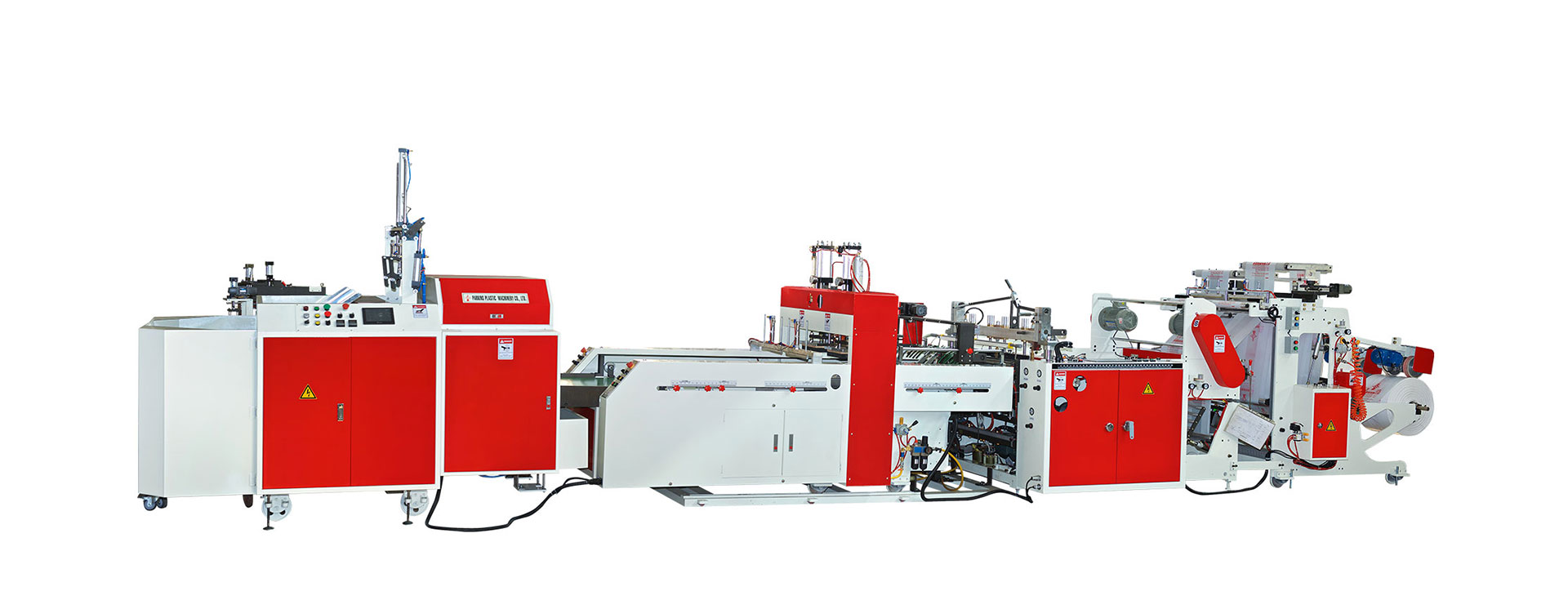

Double-Lane Fully Automatic Servo-Control High Speed T-Shirt Bag Making Machine with Packaging Device
